Product categories扭矩傳感器
一、Features 主要特點
Double Flanged Static Torque Sensor
High accuracy, good stability and strong anti-interference ability
High response frequency and convenient installation
Suitable for static and discontinuous rotation torsion measurement
Widely used in various torsion testers, torque wrenches and other static torsion measurement fields.
雙法蘭靜態扭矩傳感器
精度高、穩定性好、抗干擾能力強
響應頻率高、安裝便捷
適用于靜態、非連續旋轉的扭力值測量
廣泛應用于各種扭力測試儀、扭矩扳手等靜態扭力測量領域
二、Capacities 量程
10~1000N.m
三、Specification 技術參數
|
Rated Output |
額定輸出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.5% of rated output |
|
Nonlinearity |
非線性 |
±0.5% of rated output |
|
Hysteresis |
滯后 |
±0.5% of rated output |
|
Repeatability |
重復性 |
±0.5% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.05% of applied output/oC |
|
Temp. effect on zero |
零點溫漂 |
≤0.05% of applied output/oC |
|
Safe Temp. Range |
可用溫度范圍 |
-10oC to + 70oC |
|
Temp. Compensated |
溫度補償范圍 |
-10oC to + 40oC |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
較大激勵電壓 |
15V DC/AC |

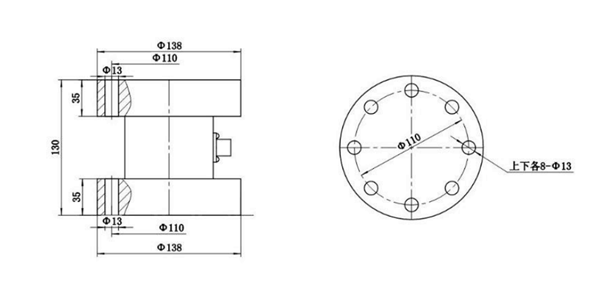

四、Dimensions 尺寸
