Product categories稱重傳感器_測力傳感器
一、Features 主要特點
High quality stainless steel material
Through hole type design structure, high speed dynamic response, strong anti bias load.
It is mainly applied to the measurement of force and pressure of screws and bars, and the measurement of force head and other occasions.
優(yōu)質不銹鋼材質
通孔式設計結構，高速動態(tài)響應，抗偏載性強
主要應用于螺釘、桿件的張力和壓力、測力器感應頭等多場合的測力
二、Capacities 量程
0~200N，500N，2KN，5KN，10KN , 20KN，30KN
三、Specification 技術參數
|
Rated Output |
額定輸出 |
1.0mV/V ±0.1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.3% of rated output |
|
Nonlinearity |
非線性 |
±0.3% of rated output |
|
Repeatability |
重復性 |
±0.3% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.05% of applied output/oC |
|
Temp. effect on zero |
零點溫漂 |
≤0.05% of applied output/oC |
|
Safe Temp. Range |
可用溫度范圍 |
-10oC to + 70oC |
|
Temp. Compensated |
溫度補償范圍 |
-10oC to + 40oC |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
較大激勵電壓 |
15V DC/AC |

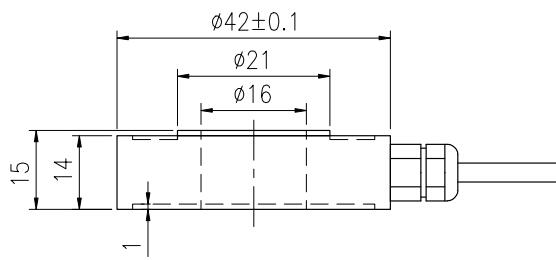

四、Dimensions 尺寸
