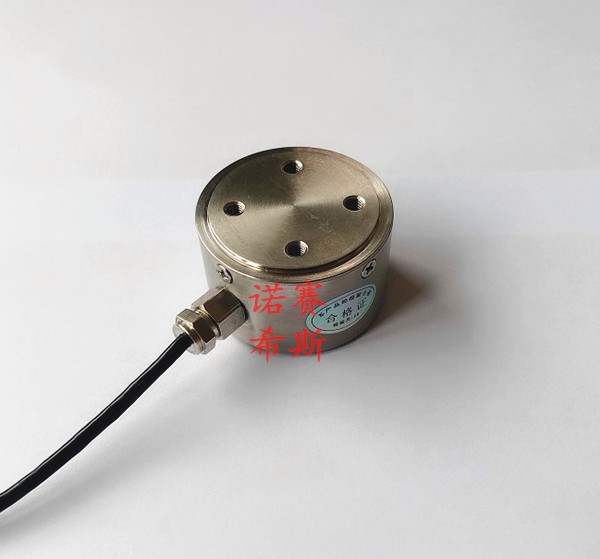

Product categories稱重傳感器_測力傳感器
一、Features 主要特點
High quality stainless steel material
Fast dynamic response, plane installation, plane force
It has overload protection function, and it is mostly used to install small force value detection field.
優質不銹鋼材質
動態響應快，平面安裝，平面受力
具有過載保護功能多用于安裝空間小的力值檢測領域
二、Capacities 量程
10kg、20kg、30kg、50kg、100kg、150kg、200kg、300kg、500kg、1000kg
三、Specification 技術參數
|
Rated Output |
額定輸出 |
1.0mV/V ±0.1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.1% of rated output |
|
Nonlinearity |
非線性 |
±0.1% of rated output |
|
Repeatability |
重復性 |
±0.1% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.05% of applied output/oC |
|
Temp. effect on zero |
零點溫漂 |
≤0.05% of applied output/oC |
|
Safe Temp. Range |
可用溫度范圍 |
-10oC to + 70oC |
|
Temp. Compensated |
溫度補償范圍 |
-10oC to + 40oC |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
較大激勵電壓 |
15V DC/AC |

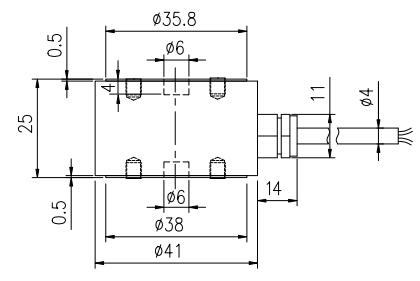

四、Dimensions 尺寸
